Stealth Bomber
Stealth Bomber
Couldn't load pickup availability
Not Available In Stores

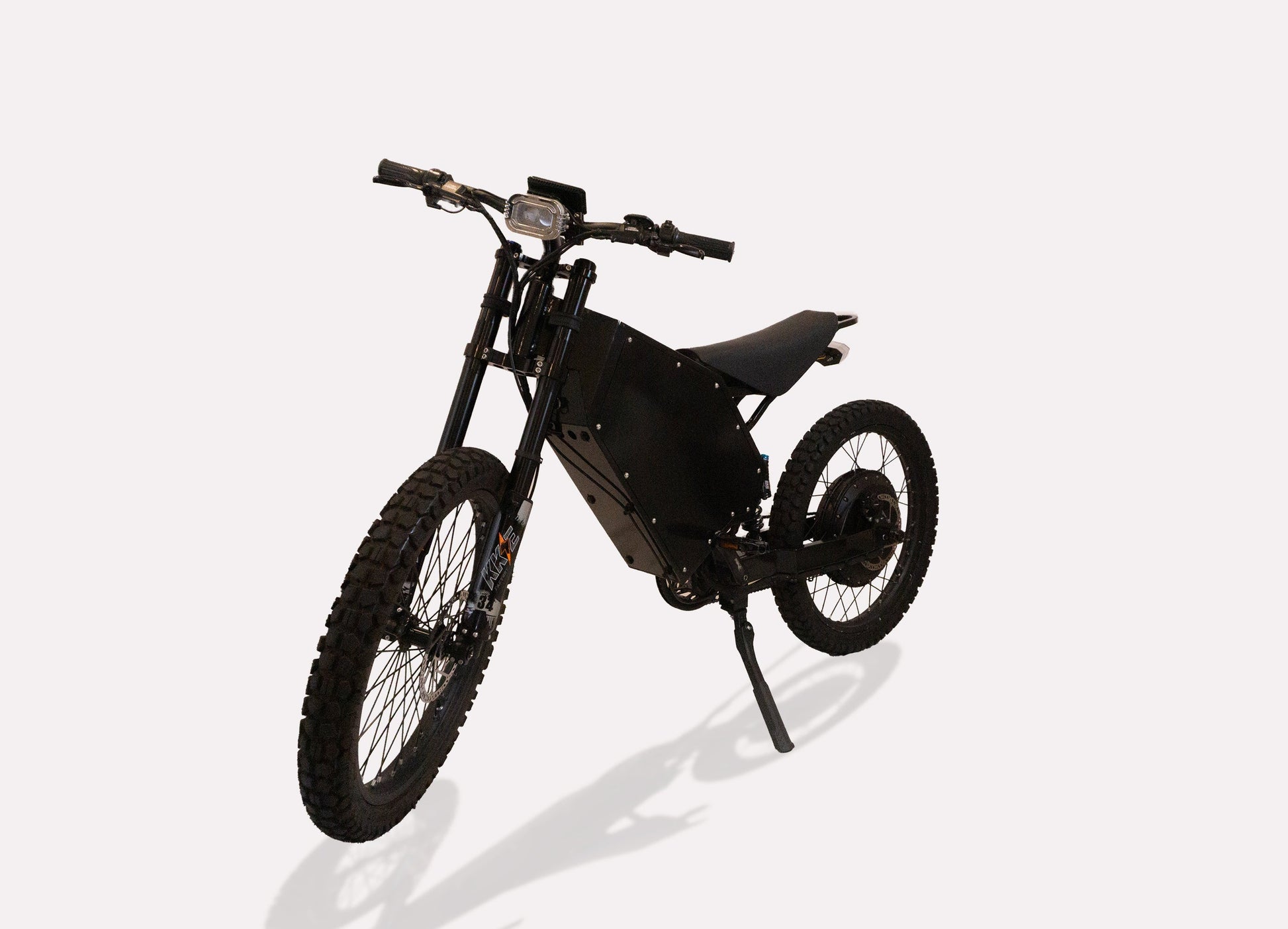

The 2024 Stealth Bomber Electric dirt bike is one of the newest hybrid eBikes. A huge advantage with a hybrid Electric dirt bike is you still have the speed and power of a full dirt bike, while retaining the usability of the manual pedal function to get you home. You will leave your gas powered friends behind at the fuel station and at the race track. Silently cruise down city streets, up rocky mountain slopes, or over jumps with the Stealth Bomber. Fully customize your bike with your choice of 21*3 turtle tires 21*3 motorcycle tires, 26*4 kinda fat tires, fenders, battery capacity, motor size, and even seat type.
Models available for warehouse pickup or 1-2 week shipping:
- 72V 15000w 70Ah / White / 26*4in Kenda Fat Bike Tires - Bicycle seat
Please note: This product requires assembly!

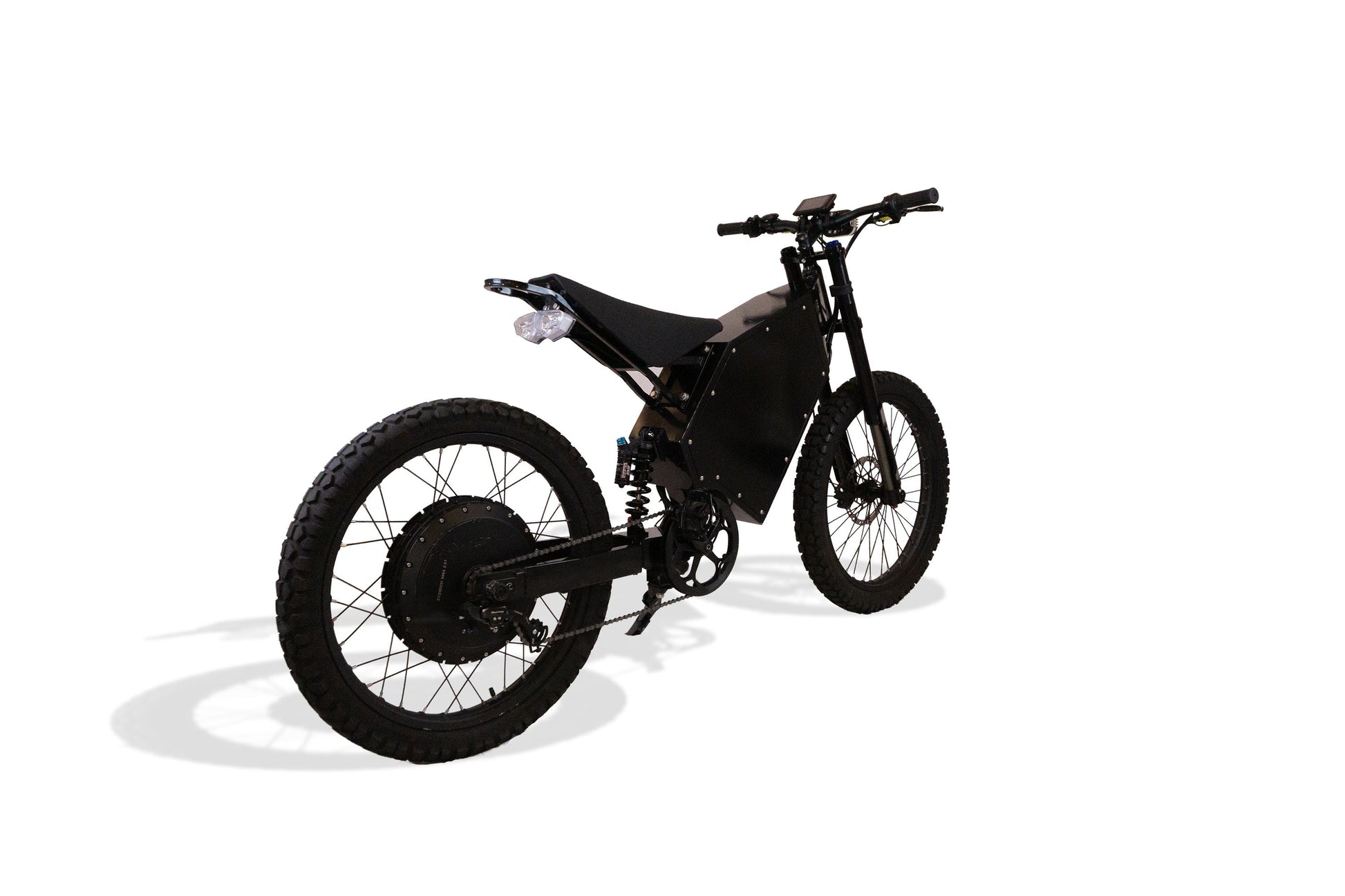

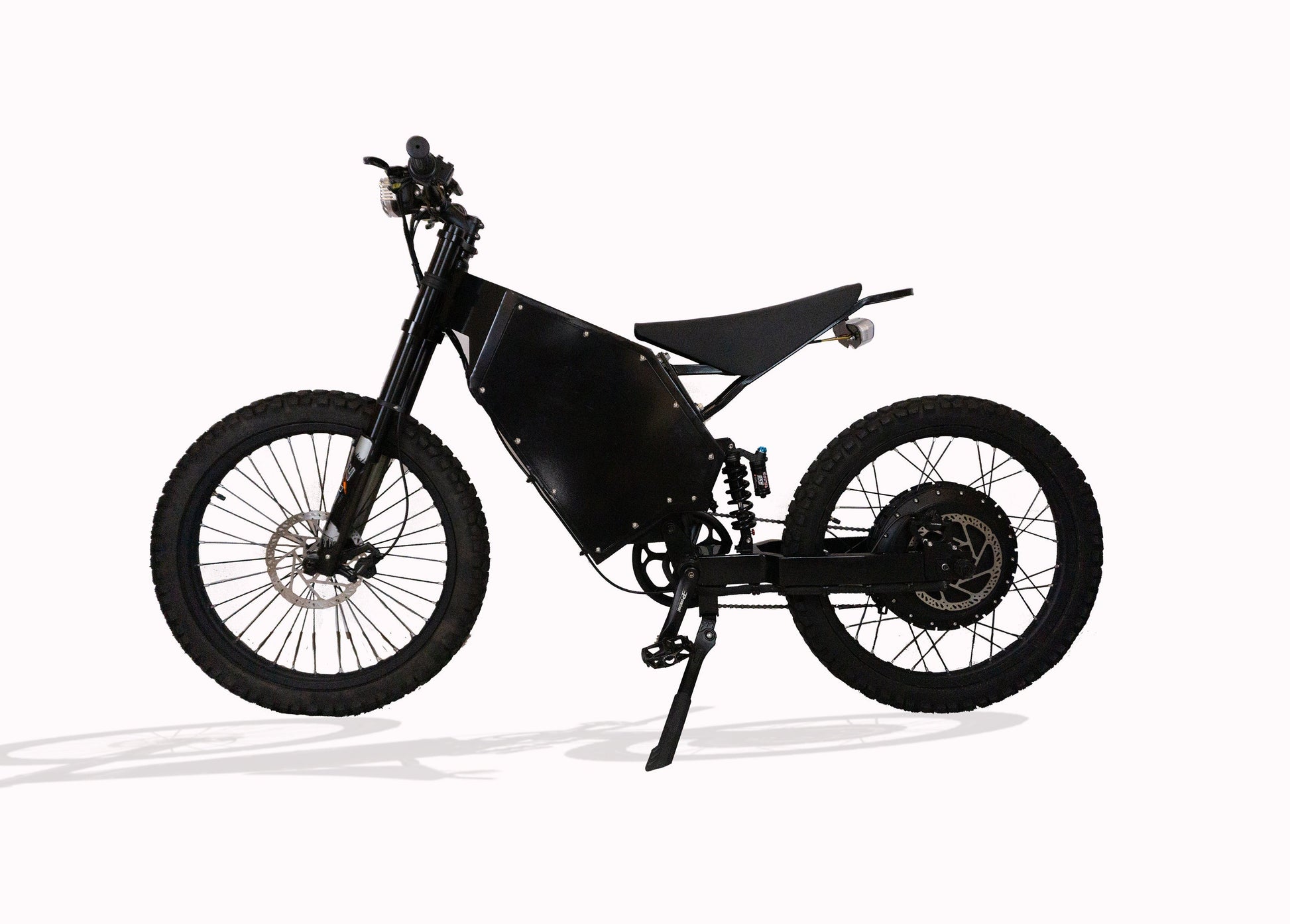

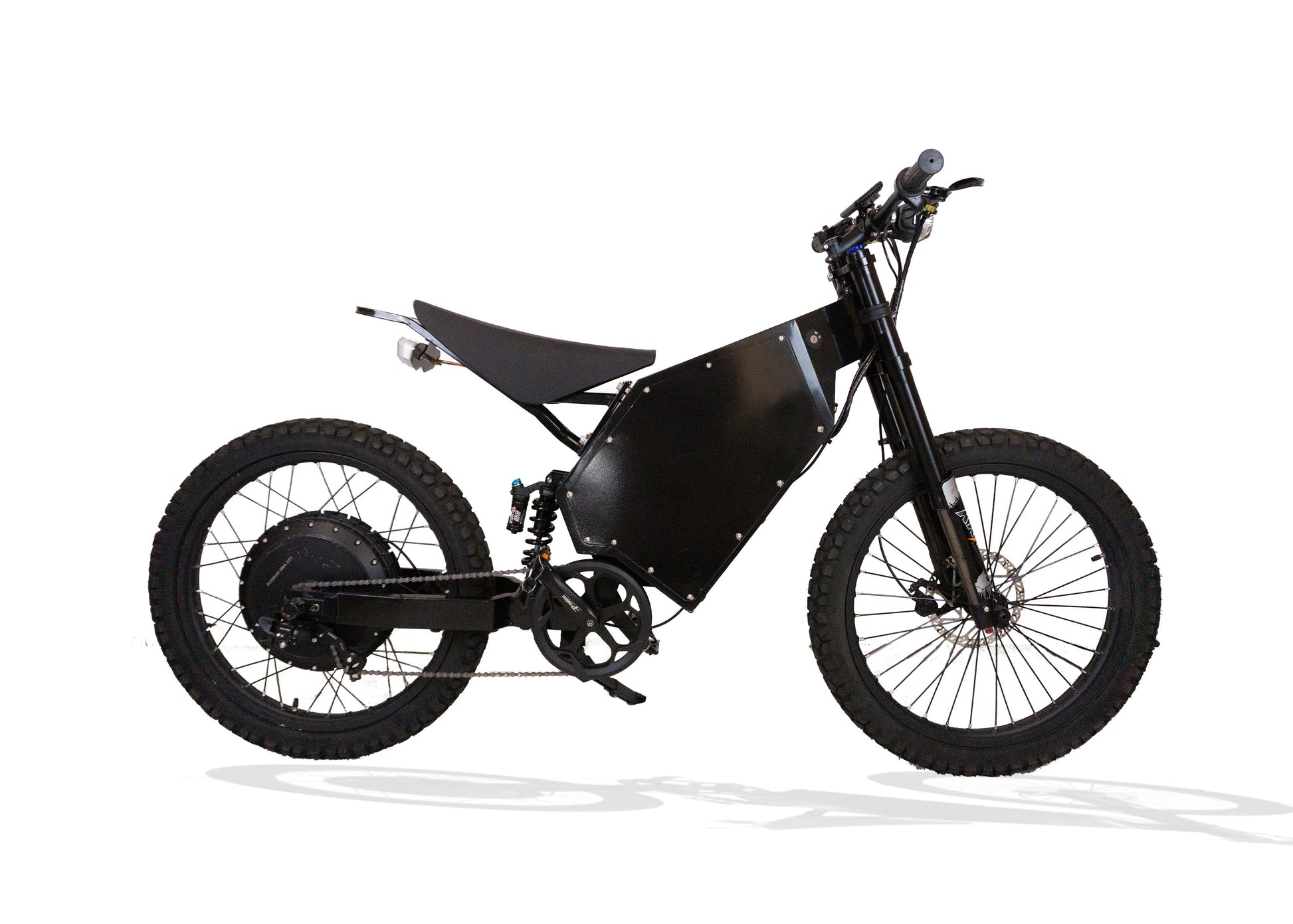

The Stealth Bomber 72V 15000W
- Top Speed 75 mph
- 65 Mile range
- 75 Mile range for 72V 70Ah EVE Cells Lithium Battery

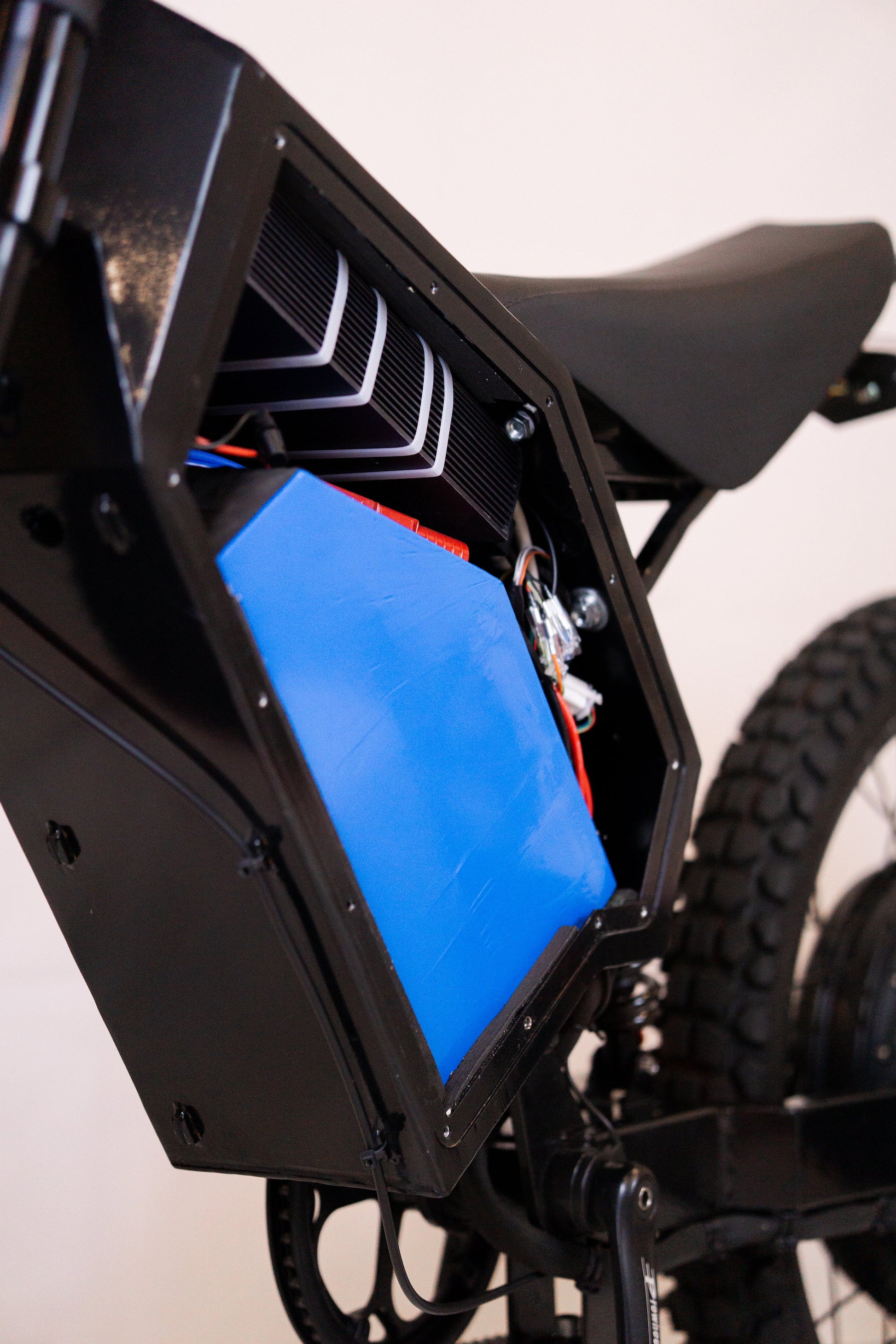

- 72V 56 Ah EVE Cells Lithium Battery
- 72V 200A Sabvoton controller
- 5A charger
- Tektrol Hydraulic Disk brakes with 203mm disks
- LCD Display

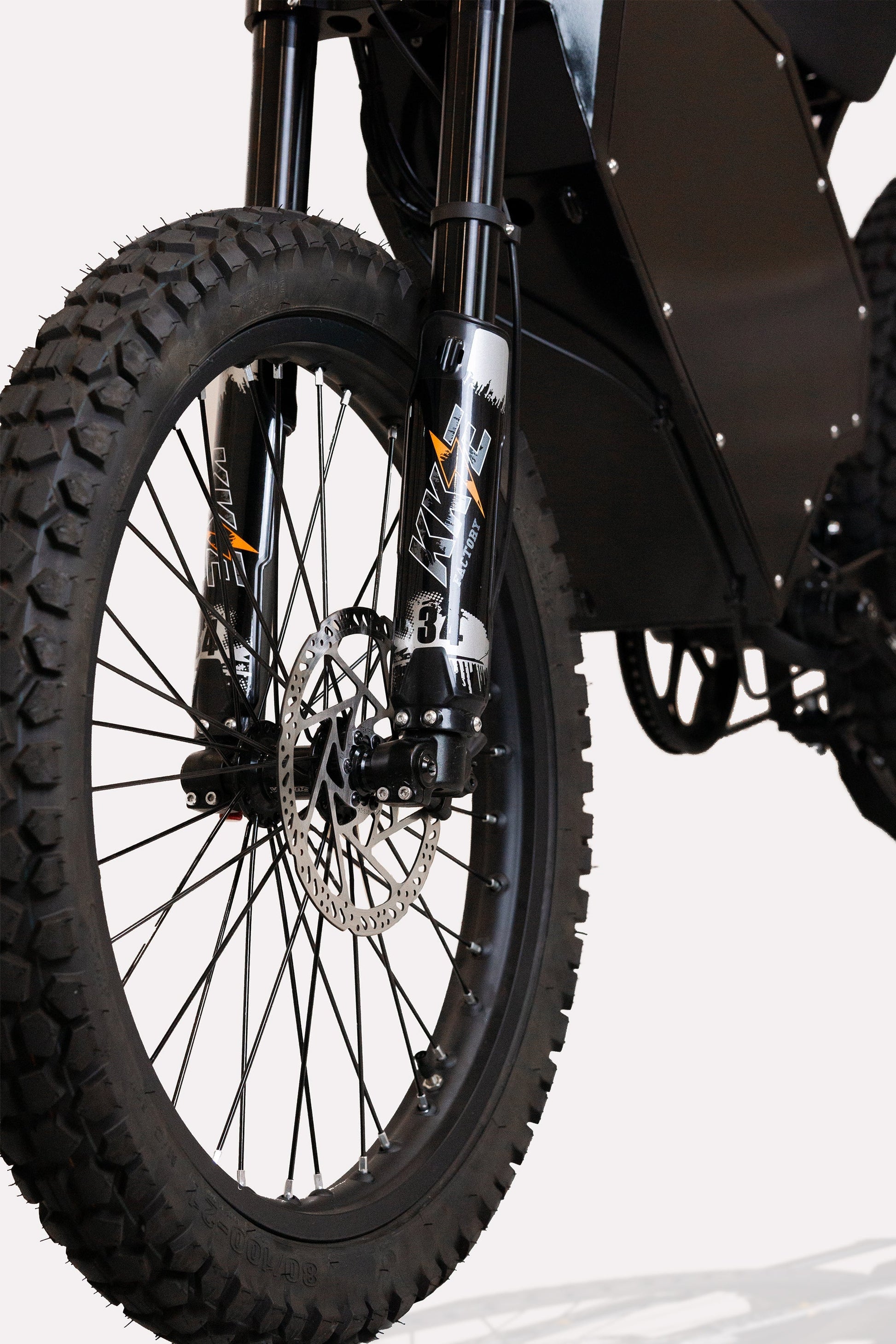

- KKE Front Fork

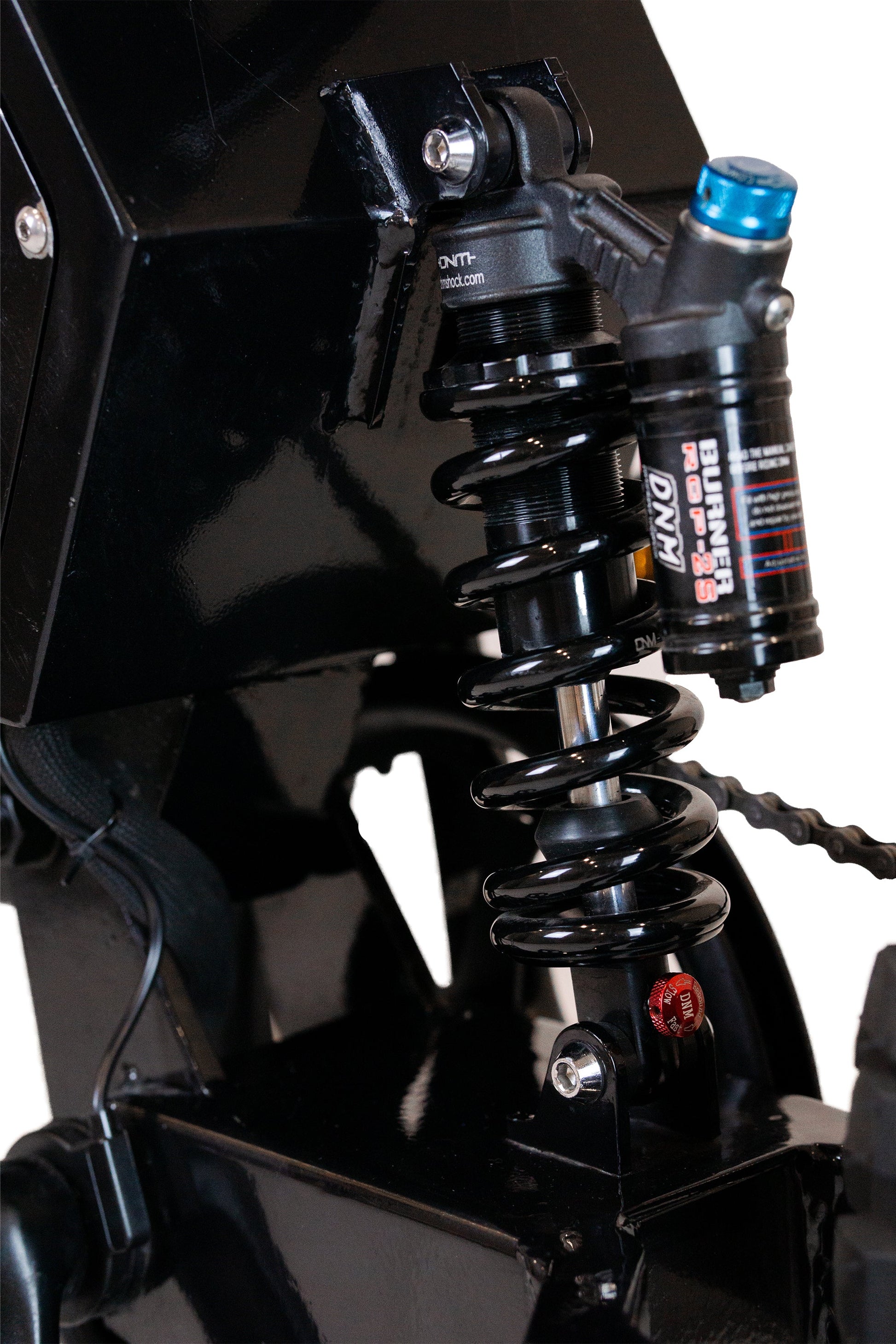

- DNM Rear Suspension
- LED Headlight and Taillight with rear blinkers
- Optional 26in 3in motorcycle tires or 26in 4in Kenda fat bike tires
- Key for security
- 5 electronic pedal assist modes
- Premium Full twist throttle
The Stealth Bomber 72V 12000W
- Top Speed 65 mph
- 55 mile range
- 72V 45 Ah EVE cells lithium battery
- 72V 200A Sabvoton controller
- Tektrol Hydraulic Disk brakes with 203mm disks
- LCD Display
- KKE Front Fork
- DNM Rear Suspension
- LED Headlight and Taillight with rear blinkers
- Optional 26in 3in motorcycle tires or 26in 4in Kenda fat bike tires
- Key for security
- 5 electronic pedal assist modes
- Premium Full twist throttle
The Stealth Bomber 72V 8000W
- Top Speed 58 mph
- 50 mile range
- 72V 40 Ah EVE cells lithium battery
- 72V 150A Sabvoton controller
- 5A charger
- Tektrol Hydraulic Disk brakes with 203mm disks
- LCD Display
- KKE Front Fork
- DNM Rear Suspension
- LED Headlight and Taillight with rear blinkers
- Optional 26in 3in motorcycle tires or 26in 4in Kenda fat bike tires
- Key for security
- 5 electronic pedal assist modes
- Premium Full twist throttle
The Stealth Bomber 72V 5000W
- Top speed 45 mph
- 40 mile range
- 72V 26 Ah EVE cells lithium battery
- 80A controller
- 3A charger
- Tektrol Hydraulic Disk brakes with 203mm disks
- LCD Display
- KKE Front Fork
- DNM Rear Suspension
- LED Headlight and Taillight with rear blinkers
- Optional 26in 3in motorcycle tires or 26in 4in Kenda fat bike tires
- Key for security
- 7 speed Shimano derailleur
- Premium Full twist throttle
NOTICE: THE STEALTH BOMBER IS SOLD FOR OFF-ROAD USE ONLY. IT IS SPEED AND POWER LIMITED TO COMPLY WITH FEDERAL, STATE AND LOCAL LAWS. DO NOT BYPASS THIS RESTRICTION OR MODIFY IT TO GO FASTER. THE BUYER TAKES FULL RESPONSIBILITY OF THE PROPER USE OF THIS PRODUCT WHICH MAY OR MAY NOT CONFORM TO ALL APPLICABLE LAWS IN THE REGION IT IS RIDDEN. WE DO NOT PROVIDE ANY DOCUMENT FOR THE BIKE, ANY CUSTOMS DOCUMENTS WILL NOT BE PROVIDED.
Product details:
- Charging time takes about 6-8 hours

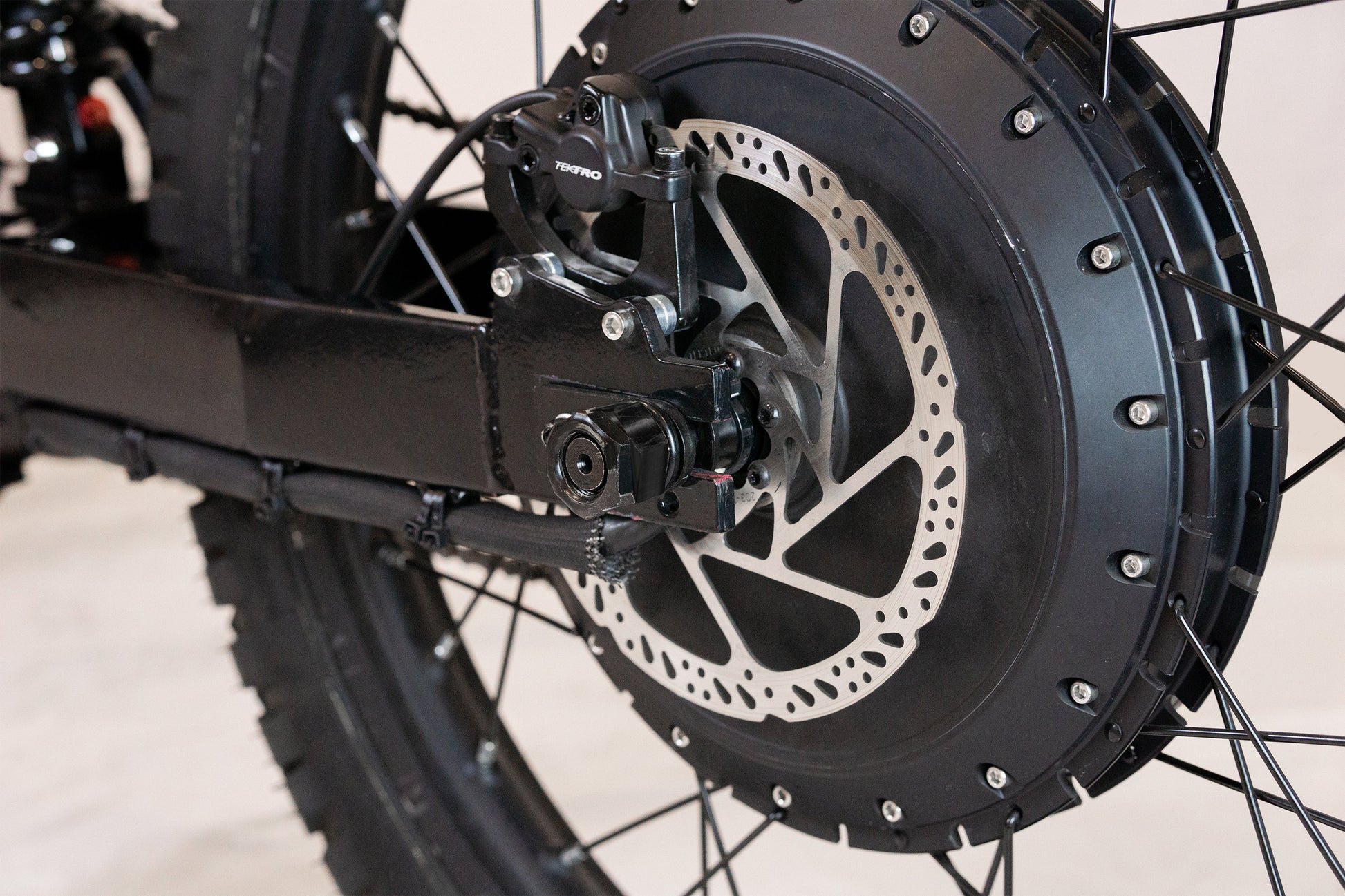

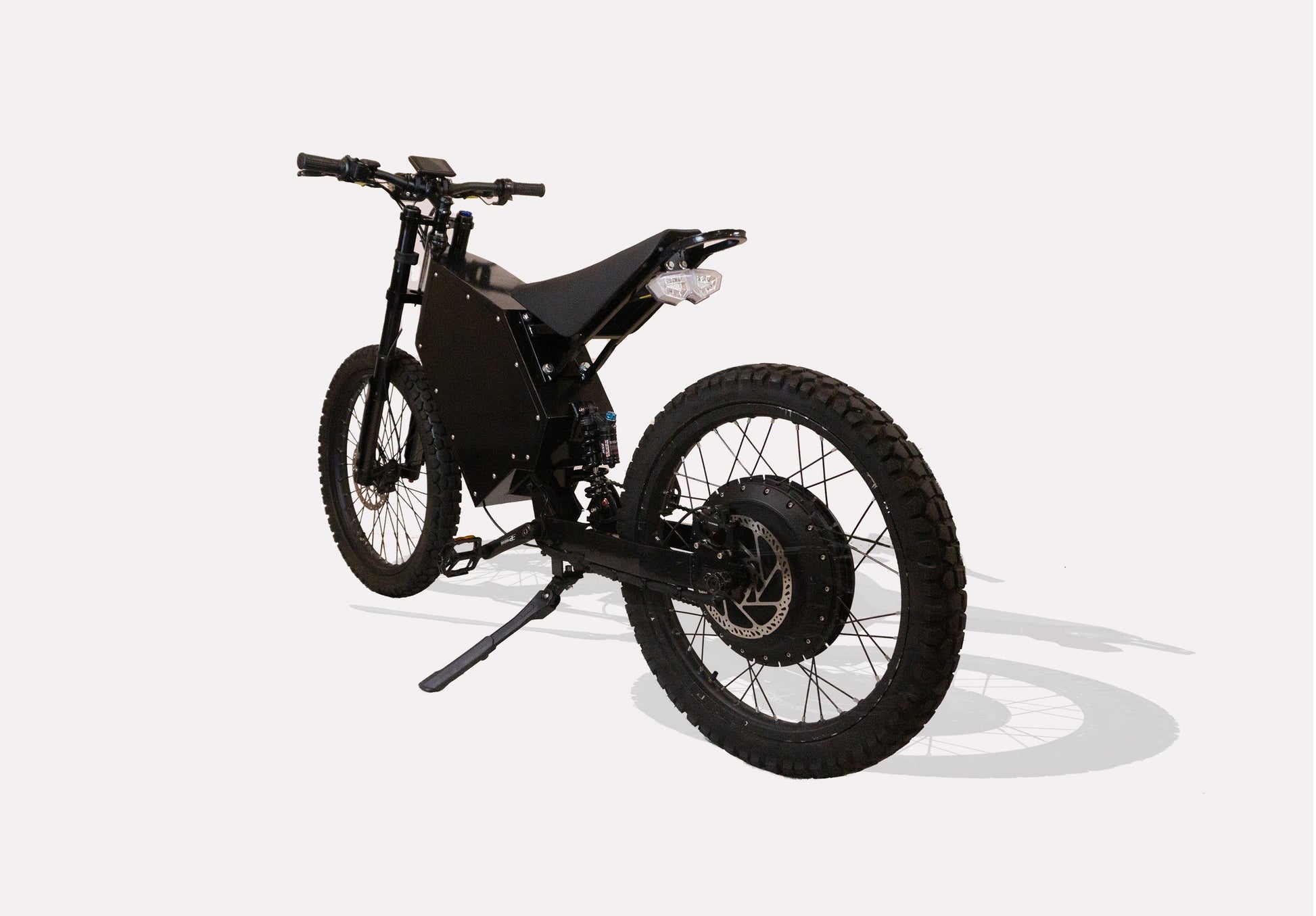

- All models feature a QS273 hub motor that can be customized from 5KW - 15KW. These can also be customized from 2.5T - 5T upon special request. This tuning will change the power ratio of the bike. 2.5T will have minimal torque and high top speed and 5T will have high torque and lower top speed.
- Smart Sabvoton controller 72V 150A to charge the battery.
- Worried about your kids going too fast? The Stealth features a top speed lock where you can adjust the speed to your preference. Double click the mode button and use code 1801 in the advanced setting portion to set the top speed to your needs!
- The advanced FOC vector algorithm is used to drive the DC brushless motor. Automatic matching of motor Hall angle in 2 minutes. Various built-in protections of the controller to ensure the safe and stable operation of the vehicle: anti runaway protection, over-voltage and under voltage protection, over-current protection, controller overheat protection.

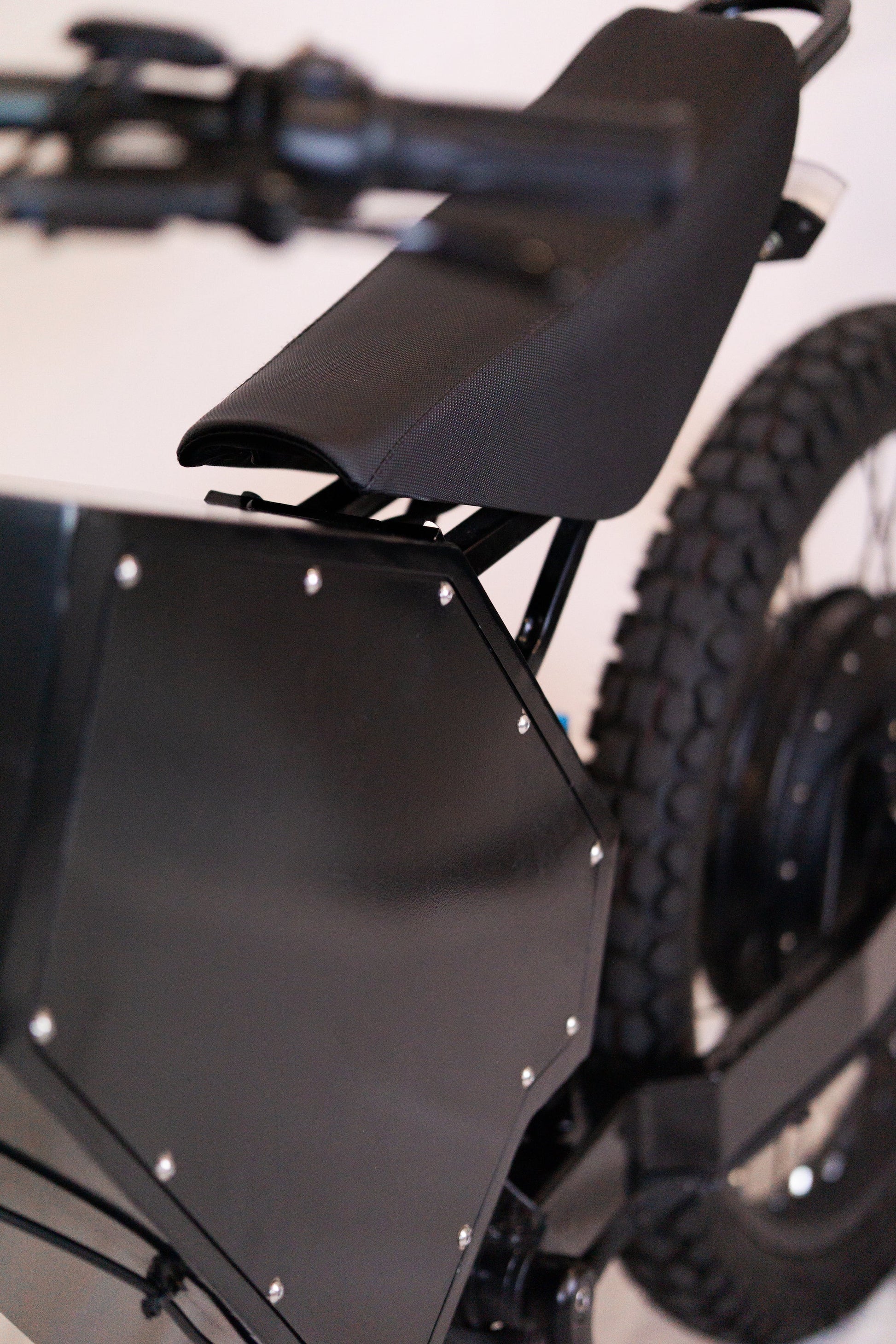

- optional bicycle seat or motorcycle seat.
- Electronic pedal assist modes for 8000W motors and above are split up into 5 different ratios of asset.
- Level 1 - 40% assist
- Level 2 - 60% assist
- Level 3 - 70% assist
- Level 4 - 80% assist
- Level 5 - 100% assist
- Tektrol hydraulic E500 brake TEKTRO E725 Hydraulic Brake Standard Finish Barrel Lever / Black Bracket

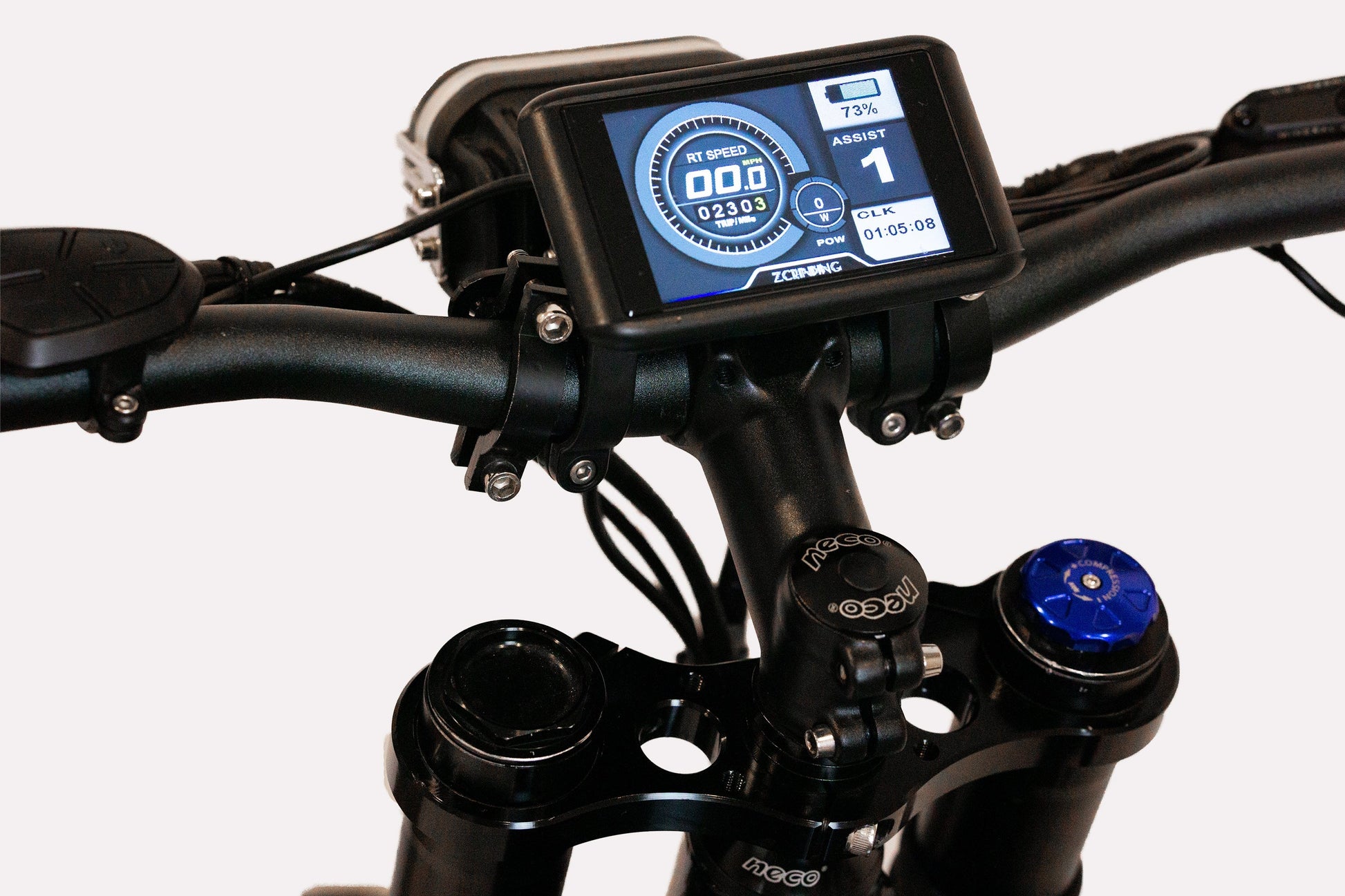

- UKC1 Colorful display 3.5 inch IPS screen for vivd readouts of speed, selected gear, battery percentage, and ride times.
- 72V battery supply rated operating power : 1W Max operating power: 5W USB charging port: 5V 500mA Off leakage current < 1uA Support current to controller : 100mA Operating temperature : -20～70℃, Storage temperature : -30～80℃

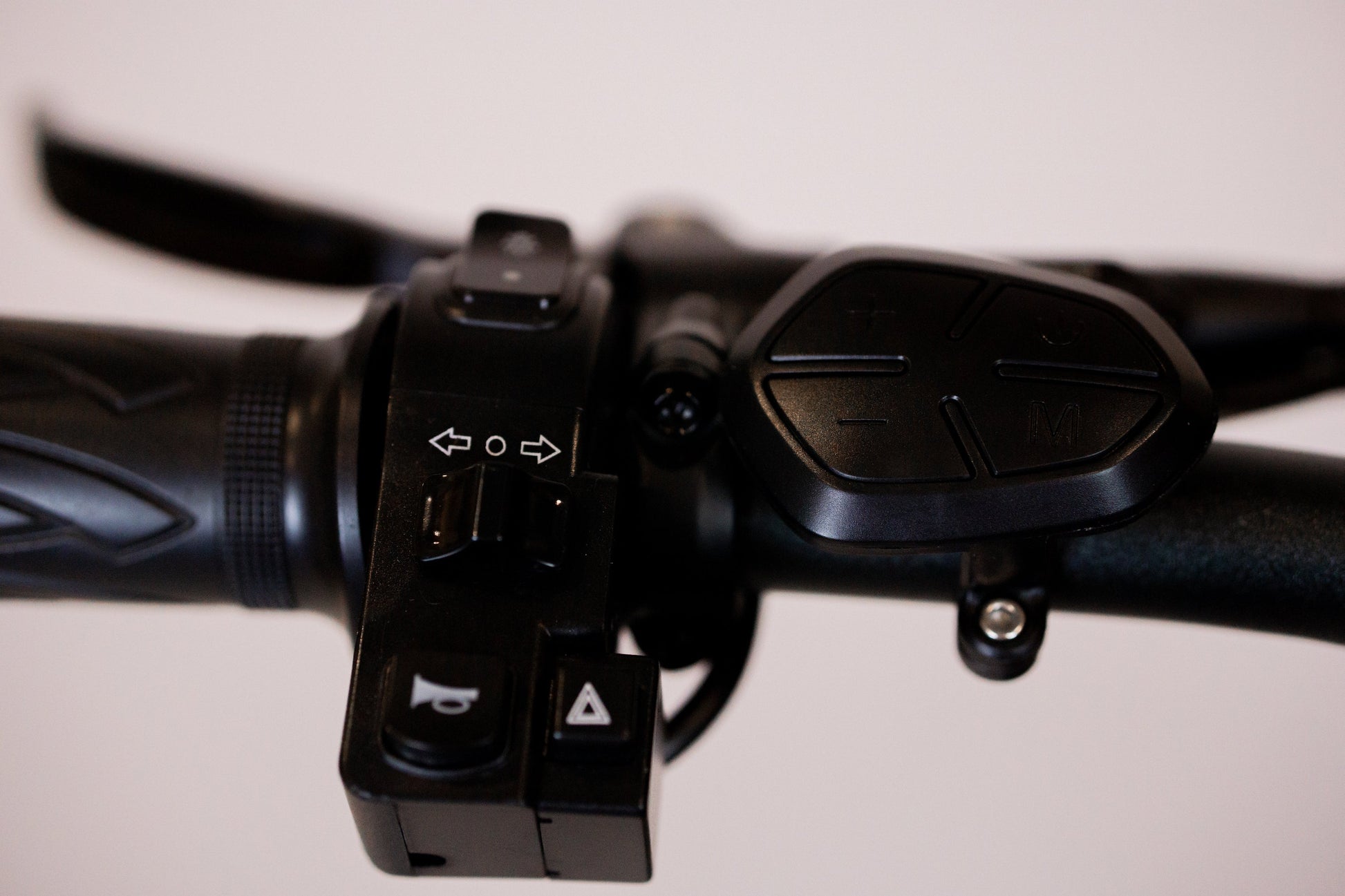

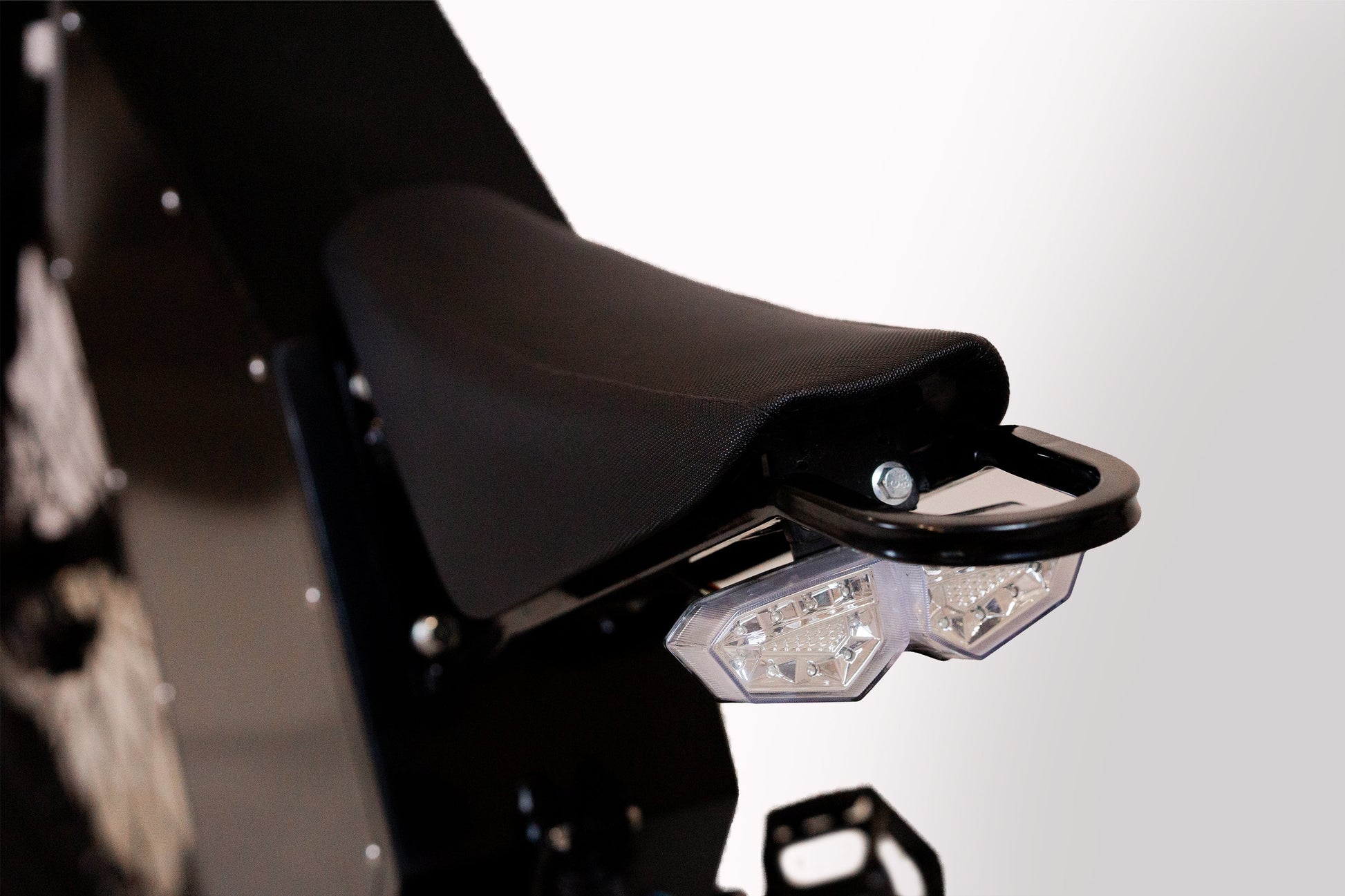

- Headlight beam, rear light with signal, and horn.
- This model ranges vary from 50-80 miles. Riding style and terrain conditions may affect your range.
- Shimano 7 speed for 5000W model
- The 70AH model of stealth bomber has a 75 mile range.
Set up Guide
Please keep in mind the Stealth Bomber does not have an assembly instruction Manuel. Our assembly walkthroughs are listed below.
Assembly tips:
- This bike has allows you to set the top speed to your needs, in order to adjust this speed you can use the code 1801 in the advanced settings. This can be accessed by double clicking the mode button.
- Keys are stored inside the frame during shipping
Our dedicated team is always available to assist you so do not hesitate to reach out if you have any questions on assembly. They can video call, or text message and help walk you through any hangups!
Please watch each assembly video before attempting to assemble your stealth bomber!
- https://go.screenpal.com/watch/cZ6jF8VWbyK
- https://go.screenpal.com/watch/cZ6jF8VWbys
- https://go.screenpal.com/watch/cZ6jF8VWbyM
- https://go.screenpal.com/watch/cZ6jF8VWbyL
https://go.screenpal.com/watch/cZ6jF8VWby7
- FREE SHIPPING - Please note, due to high demand shipping times can take up to 6-8 weeks.
At Zappscycles we've made a deliberate decision to build the Stealth Bomber to order rather than keeping pre build models readily available. This approach allows us to offer our customers the opportunity to create a truly custom ride, tailored to their specific preferences and needs.
By building bikes on demand, we have the flexibility to offer a wide range of customization options—from motor size and ride height to components, colors, and accessories. This level of personalization simply wouldn’t be possible if we were to maintain a large stock of pre-built bikes.
While we understand that waiting for a bike to be built may require some patience, we believe the result is well worth it.
Warranty Information
Warranty Information
Warranty Information:
For 30 days after the delivery date we can replace any part that is deemed defective from manufacturing.
The power system (motor, controller, display and battery) has a 12 month limited warranty. Chassis, swing arm and other none wear part have a 12 months warranty.
Provide Documentation: You will be required to provide proof of purchase and any other documentation that may be requested to validate the warranty claim.
Exclusions: We do have exclusions for normal wear components (such as tires, bearings, seals, chain, brake components, suspension valving), as well as misuse or failure caused by damages due to accident, collisions, or neglect. You are responsible for making sure every component is properly installed and serviced upon receiving your product. There is no reimbursement for repair costs or assembly fees for replacement parts or any other costs associated with repairs. All costs associated with assembly are also covered by the customer.
Batteries: The warranty for the battery is subject to a gradual capacity reduction, which is considered normal, and it is not covered unless the capacity drops below 65% of its original capacity within the warranty period.
Misuse also includes altering any wiring, or installing any non-genuine parts, as well as any use for racing, crashing, accidents, or negligence. Any misuse in charging, storing, or discharging will void this limited warranty. Limited warranty are non-transferable and you must have proof of purchase from us before asking for warranty replacement.
Dimensions
Dimensions
Weight & Dimensions
Steerer tube: 1.13"
Outer tube: 1.65"
Inner tube: 1.37"
Down tube: 0.78"
Frame Material Steel 1/2mm
Seat Height: 33.7" - 42.5"
Wheel Size: 21" 3"
Front Fork Travel: 8"
Vehicle Weight:
5KW 26AH: 154.34lbs
8KW 40AH: 198.4lbs
12KW 45AH: 205.3lbs
15KW 56AH: 211.6lbs
15KW 70AH: 220.5lbs
Axle: 4.33"
Weight Capacity: 330lbs
Returns
Returns
Most of our items are eligible for our 14 day refund policy. If your product is faulty, damaged, or missing parts on arrival, you can send it back to us for a refund or item exchange within 14 days of receiving it. Please note, customers are responsible for the cost of return shipping. The return shipping amount will be deducted from the refund issued.
An unpacking inspection is required before you sign for it. If you are not able to unpack the goods at the first time, an unboxing video is highly recommended to prove any shipping damage. If a bike has a minor cosmetic issue (such as a scratch, or chip on the paint), we will attempt to come to a reasonable discount but this is not grounds for warranty replacement or for a return once you signed for it.
Time frame for refunds:
Refunds may take up 3-6 weeks to be shipped back to our supplier and then an additional 5-7 business days to process once we have inspected your product.
How to contact us for a refund
To start a return, you can send us an email at customer@zappscycles.com. Please Include pictures and a detailed description of the problems your experiencing with your product. If your return is approved & accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package.
Please note the customer is responsible for all return shipping costs.
Eligibility for all refunds
You may return most new, unused items within 14 days of delivery for a full or partial refund of product cost (minus shipping and any other fees for restocking or damaged parts). Because the nature of our items we always start return eligibility from the date of delivery.
To be eligible for a return, your item must be in unused condition, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase. Before a return is sent, the customer must have written approval from Zappscycles If a customer sends a return without written consent from Zappscycles, a refund will not be issued, and the customer will have to pay shipping to get the item returned or sacrifice the item.
You can always contact us for any return question at customer@zappscycles.com
* To be eligible for a return, your item must be unused and in the same condition you received it.
* It must also be in the original packaging.
* To complete your return, we require a receipt or proof of purchase.
* To be eligible, the item must be faulty or damaged. We do not accept refunds if you change your mind.
* If you did not receive your item/s 90 days after ordering and have your order number and proof of purchase.
* If you payed full retail price for your item/s. *Sale items are not eligible for refunds. If an item is discounted, it cannot be refunded.*
-
Hardened Steel Frame
-
72V 26-70Ah Lithium Battery
-
5-15KW High Torque Motor
-
Top Speed of 80 mph
-
203mm Upgraded Brake Rotors
-
Max Load Capacity 330lbs
